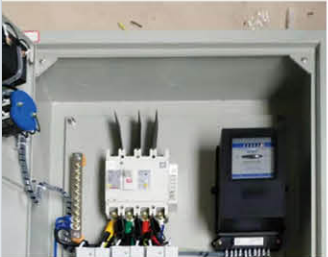

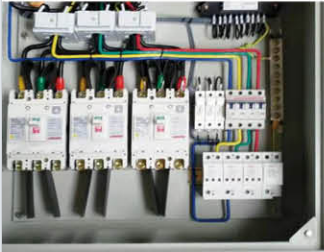

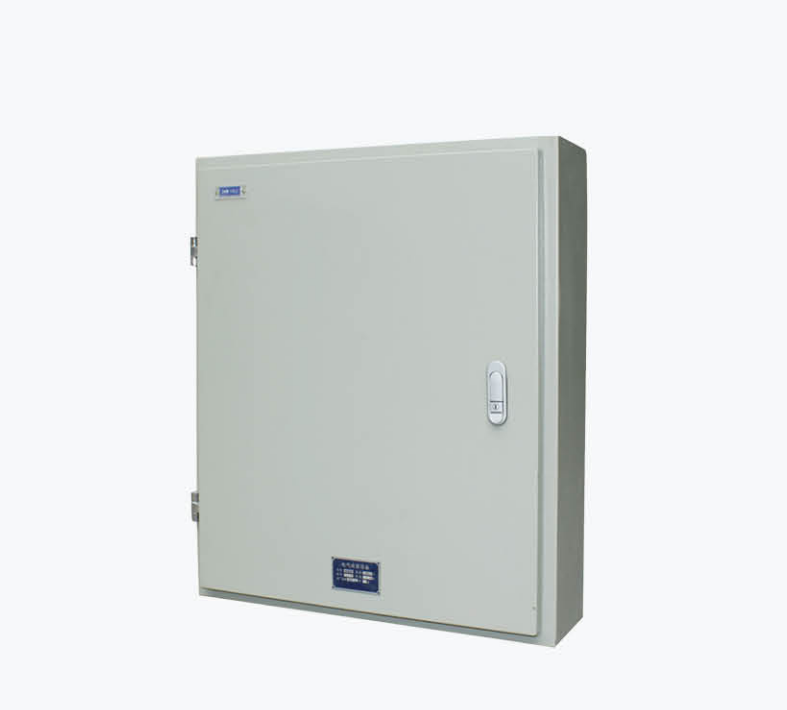

Low-voltage Integrated Distribution Box

5 0 Reviews

This product is suitable for circuits with an AC frequency of 50Hz and a rated operating voltage below 500V. Under special requirements, the degree of protection can reach IP55. Knockout holes are provided on the top and bottom of the cabinet, and multi-tube incoming lines can use reserved hole-opening plates. The maximum rated current can reach 400A, making it especially suitable for user metering control boxes in industrial and mining enterprises, hotels, civil residences, and similar applications.

Product Description

Temperature: The ambient air temperature shall not exceed +40°C, with a lower limit of -5°C.
Humidity: At a maximum temperature of +40°C, the relative humidity of the air shall not exceed 50%. Higher relative humidity is permitted at lower temperatures, for example, up to 90% at +20°C.
Altitude: The installation site altitude shall not exceed 2000m.
Installation category: Class II.
Pollution degree: Degree 3.
Rated operating voltage: 230V, 400V.
Rated operating current: 400A.
Rated short-circuit breaking capacity: 80kA.
Enclosure protection degree: IP55.

Product Model	SpecificationHeight H × Width W × Depth D (mm)	Product Model	SpecificationHeight H × Width W × Depth D (mm)
JXF1-2525/14	250 × 250 × 140	JXF1-6040/23	600 × 400 × 230
JXF1-3025/14	300 × 250 × 140	JXF1-6050/14	600 × 500 × 140
JXF1-3025/18	300 × 350 × 180	JXF1-6050/20	600 × 500 × 200
JXF1-3030/14	300 × 300 × 140	JXF1-6050/23	600 × 500 × 230
JXF1-3030/20	300 × 300 × 200	JXF1-7050/16	700 × 500 × 160
JXF1-4030/14	400 × 300 × 140	JXF1-7050/20	700 × 500 × 200
JXF1-4030/20	400 × 300 × 200	JXF1-7050/25	700 × 500 × 250
JXF1-5040/14	500 × 400 × 140	JXF1-8060/20	800 × 600 × 200
JXF1-5040/20	500 × 400 × 200	JXF1-8060/25	800 × 600 × 250
JXF1-5040/23	500 × 400 × 200	JXF1-10080/20	1000 × 800 × 200
JXF1-6040/14	600 × 400 × 140	JXF1-10080/25	1000 × 800 × 250
JXF1-6040/20	600 × 400 × 200	JXF1-10080/30	1000 × 800 × 300
